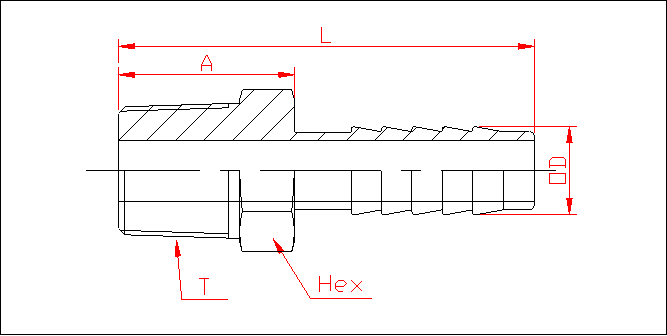

| PART NO. | THREAD T | HOSEN BORE | DIMENSIONS | ||||
| OD | A | C | HEX | L | |||
| MNPT-08 | 1/2-14NPT | 08 | .381/.374 | 1.104 | .760/.740 | 0.875 | 2.605/2.575 |
| MNPT-12 | 3/4-14NPT | 12 | .633/.624 | 1.174 | .780/.750 | 1.250 | 2.775/2.745 |
| MNPT-16 | 1-11 1/2NPT | 16 | .854/.843 | 1.362 | .968/.938 | 1.375 | 2.963/2.933 |
| MNPT-20 | 1 1/4-11 1/2NPT | 20 | 1.072/1.059 | 1.494 | .985/.955 | 1.750 | 3.585/3.555 |
| MNPT-24 | 1 1/2-11 1/2NPT | 24 | 1.307/1.290 | 1.544 | 1.030/1.000 | 2.000 | 3.635/3.605 |
| MNPT-32 | 2-11 1/2NPT | 32 | 1.762/1.740 | 1.764 | 1.062/1.032 | 2.500 | 3.855/3.825 |
